General 950 Mobile Stone Crusher for Sale from General Makina - Frankfort

Thursday, 28 June 2018

Item details

City: Frankfort, Free State
Offer type: Sell
Price: USD 320,000

Contacts

Contact name Nilufer ERCİYAS
Phone +905492922121

Item description

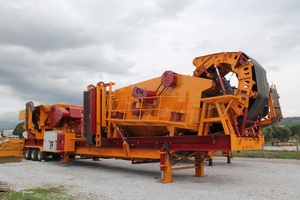

GENERAL 950 MOBILE CRUSHER with it’s new system, it is the first in Turkey
New System Crushing and Screening Plant, with 150-240 tons / hour capacity. Ideal for crushing granite and basalt.
GENERAL 950 Closed Circuit Crushing and Screening system is all collected in one single platform and can be easily transpoted with one truck. These group crushers have designed for short term installation.
It is the most suitable for crushing hard stones (basalt, granite) and mines (iron ore, chrome mine, quartz).
It is the ideal crushing unit to crush the abrasive materials.
Vibrating Feeder and Bunker
The feeder system is driven by two vibromotors. At this count, trouble-free and minimal maintenance is offered.
The feeder reservoir is suitable for feeding with Excavator and Loader and can be fed in the truck with additional reservoirs during continuous operation.
All wear points in the feeder and in the bunker are protected by wearable armor.
The Feeder Tablet has a screening system. Thanks to the by-pass conveyor, sifted ground material can be poured into the stock area.
Jaw Crusher
Size : 900x650 mm Primary type
Motor Power : 75 Kw
Adjustable mechanism and jaw crusher can be easily adjusted.
Main Conveyor Belt 800 mm
Pallet type, rubber conveyor.
High Screen Capacity, Dual Transverse Screener.
Size : 1600x5000mm
Motor Power : 15 KW
Number of decks : 3
Secondary Impact Crusher (Hard Material Crusher)
1200x1400 mm Special type Secondary Impact Crusher system
Engine : 160 Kw
Under-Sieve Stock Conveyor Belt 1000 mm Scorpion Model
Stock Conveyor Belt x 2 pcs 600 mm Folded type
Mobile Chassis 3-axle Chassis Special constructed Chassis
Hydraulic System
Thanks to 8 hydraulic feet and 8 fixed feet provides easy installation.
The electric panel is Siemens brand
Panel System has Siemens Soft Starter system and special control system. All functions can be controlled with Remote Control (Radio Control System). The special touch screen remote control system provides easy installation.
Generator System Optional, 6 Cylindrical diesel engine and Marelli Alternator of Cummins, Perkins, Doosan, Deutz brands.
Capacity: Capacity is 160 – 240 t/h, it depends on crushing material, feding size and final sizes.
The dust removal system prevents dusting by conveying high pressure water to the nuzzle to prevent the dusting.
Drive drums are rubber coated and threaded.
The gear units are 3 transmission type and the new generation is with torque connection system.
Conveyor Belt Tires Derby or Eksash Brand.
Bearings: SKF or FAG Bearings
The Iron and Steel Products used are Eregli Brand and A1 quality.
By-pass system
Magnetic magnet (optional)
Generator System (optional)
Additional hopper to feed with truck
Dust Removal System
Frequency Control System is used instead of Soft starter.


Fore more information please visit our web site: httpswww.gmcrusher.com/general-950-mobile-stone-crusher

Our factory General Makina is located in Izmir/Turkey.
